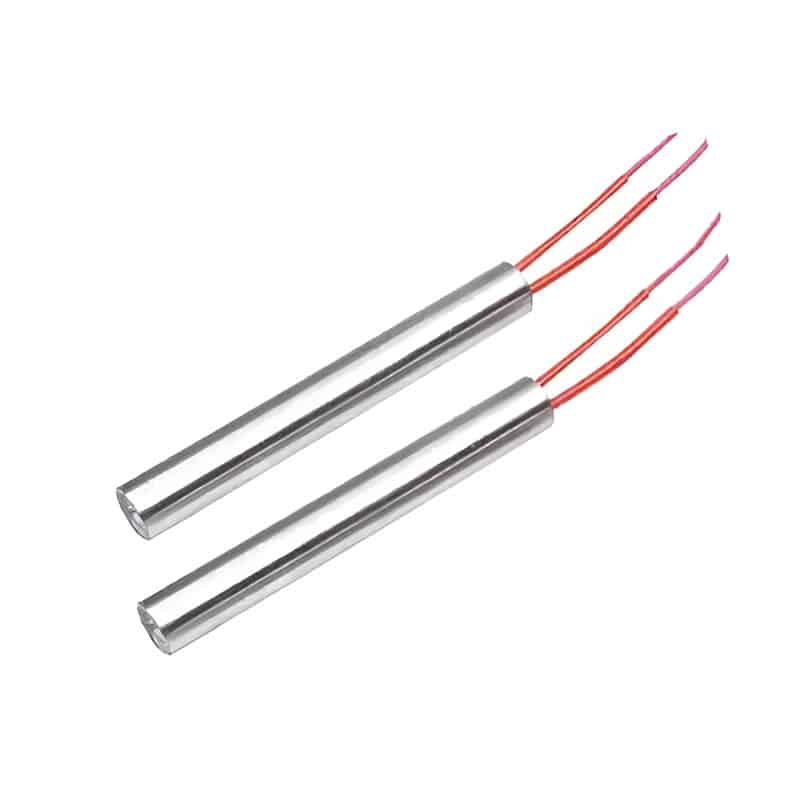

Cartridge Heaters for Precision Industrial Heating
High-performance electric cartridge heaters designed for tight spaces, rapid heat-up, and long service life across diverse industrial applications such as tooling, packaging, plastics, and heating equipment.
Cartridge Heater Product Configurations
Explore Our Range of High-Density, Customizable Cartridge Heaters

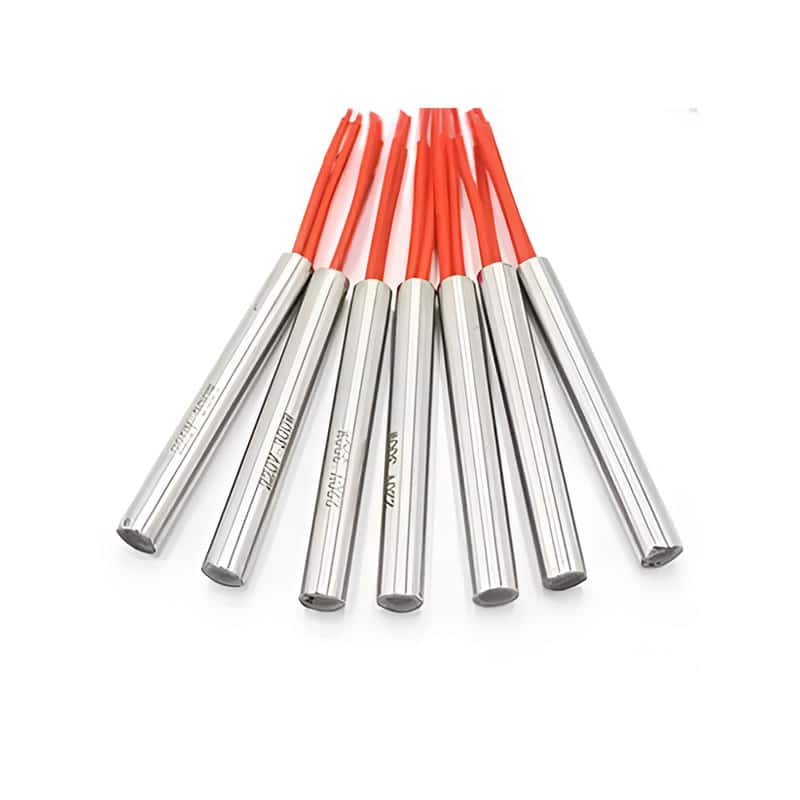

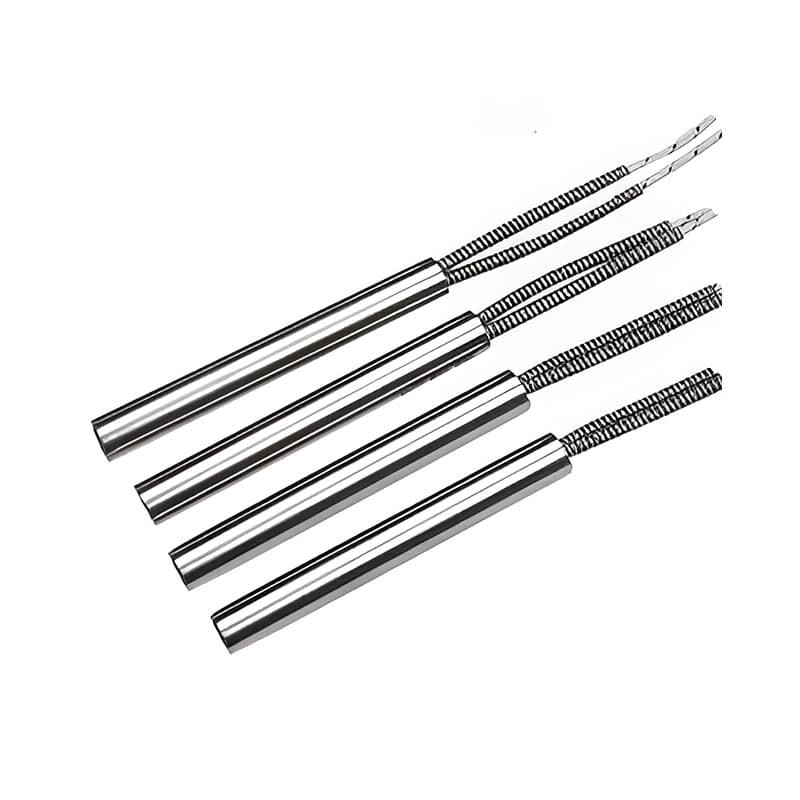

High-Density Cartridge Heaters
High-output cartridge heaters for compact industrial heating.
Low Watt Density Cartridge Heaters
Cartridge heaters designed for stable, long-life heating.

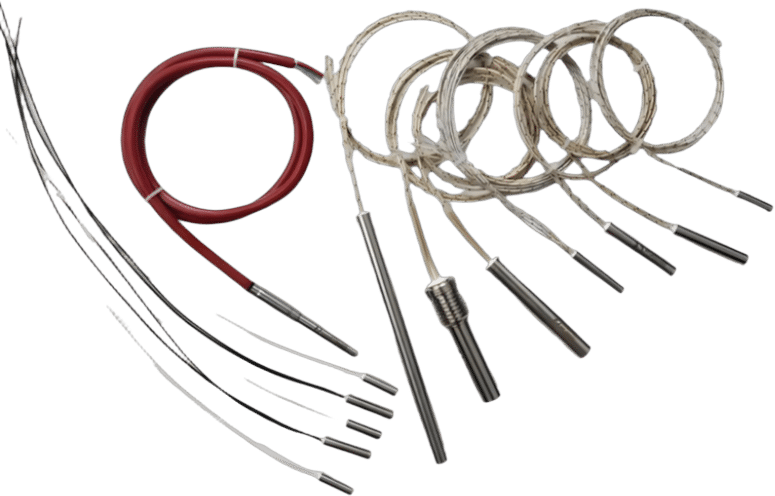

Cartridge Heaters with Thermocouple
Cartridge heaters with built-in temperature sensing.

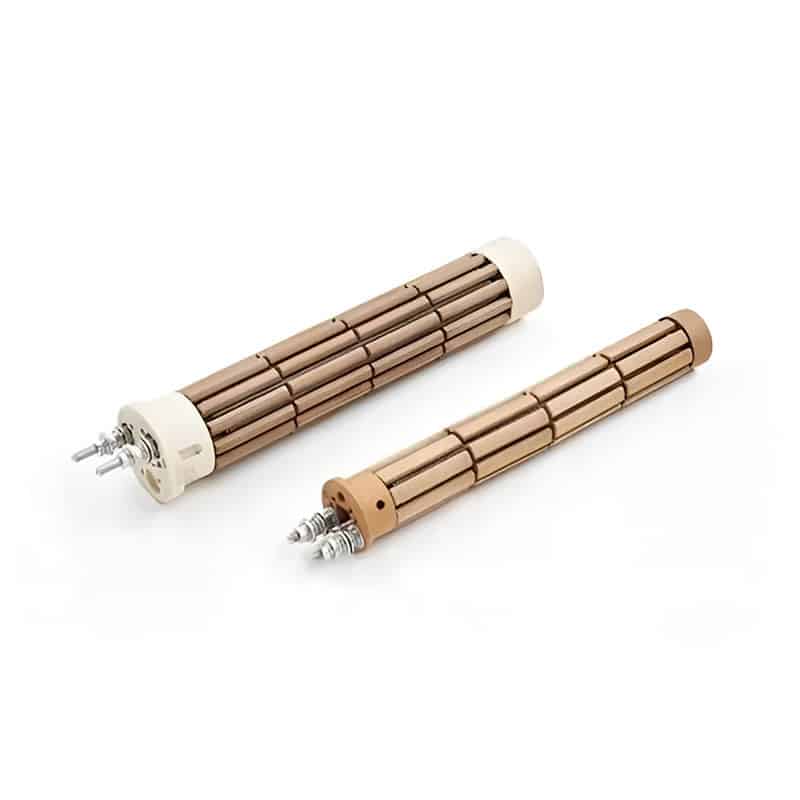

Ceramic Cartridge Heaters
Electrically insulated cartridge heaters for high-temperature duty.
Miniature Cartridge Heaters
Small-diameter heaters for precision and confined spaces.
Threaded Cartridge Heaters
Cartridge heaters with threaded mounting for secure installation.
Immersion Cartridge Heaters
Cartridge heaters for direct contact heating applications.

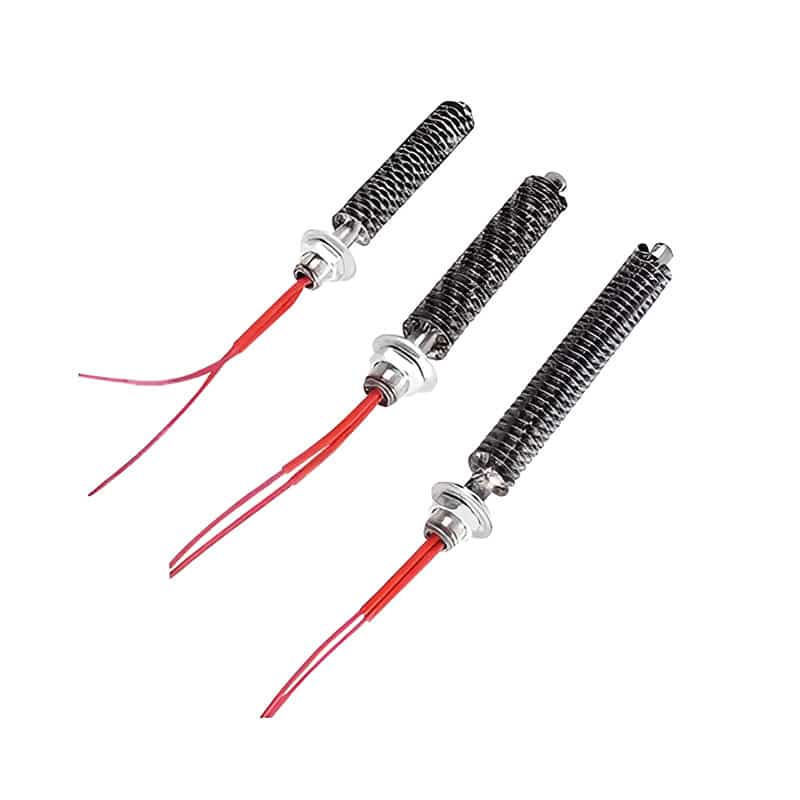

Finned Cartridge Heaters
Cartridge heaters with fins for enhanced air heating.
Specialized Cartridge Heaters
Purpose-built cartridge heaters for demanding applications.
Custom Cartridge Heaters
Fully customized cartridge heaters tailored to your requirements.
Diameters
- Standard: 6mm cartridge heater, 8mm, 10mm, 12.5mm
- Imperial: 1/8”, 1/4”, 3/8”, 1/2”, 5/8”, 3/4”
- Custom diameters available upon request
Watt Density Levels
- Low watt density
- Standard watt density
- High watt density (up to 40 W/cm²)
Voltage Options
- 12V / 24V / 48V / 110V / 120V / 220V / 230V / 380V
Length Range
- 20 mm – 1500 mm (depending on diameter)
Applications of Cartridge Heaters
DarwinHeat cartridge heaters are designed for precision heating applications where compact size, high watt density, and accurate temperature control are required.
Molds and dies
Plastics injection molds, die-cast dies, rubber vulcanization, hot runners
Plastics & packaging
Extruder barrels, sealing jaws, shrink tunnels
Chemical
Reactors, distillation columns, tank tracing, salt/oil baths, dryers
Semiconductor
Wafer baking, vacuum coaters, eutectic soldering
Medical & food
Sterilizers, chocolate melters, lab ovens, fryers
Appliances
Coffee makers, steam irons, hair dryers, mini heaters
Aero/auto/energy
Aircraft pre-heat, battery warming, 3-D glass molds, molten-salt storage
Special industry
Hot staking, tobacco, shoe machines, robotics tips
| Application Area | Typical Use | Why Cartridge Heaters Fit |
| Molds & Dies | Plastic injection molds, die casting tools | High watt density, precise temperature control |
| Plastic Processing Equipment | Extruders, nozzles, hot plates | Fast heat-up, uniform heat distribution |
| Packaging Machinery | Sealing jaws, cutting blades, forming tools | Stable heating, compact installation |
| Metal Processing | Heating metal blocks, tooling fixtures | Efficient heat transfer to solid materials |
| Medical & Laboratory Equipment | Sterilizers, analyzers, test devices | Accurate temperature control, reliable performance |
| Food Processing Equipment | Heating plates, sealing and forming tools | Clean design, stable and controllable heating |
| 3D Printing & Additive Manufacturing | Hot ends, heating blocks | Compact size, rapid thermal response |
| Automation & Industrial Machinery | Sensors, actuators, custom heating zones | Flexible design, easy integration |
Quality Testing & Inspection
Every Darwinheat cartridge heater is subject to a comprehensive quality inspection process to ensure safety, accuracy, and long-term reliability.
Insulation resistance test-
Dielectric strength test
-
High-temperature burn-in
-
Resistance & wattage verification
-
Dimensional accuracy inspection
-
Lead integrity validation
Tailored to Your Specifications: Custom Cartridge Heaters
Darwinheat provides flexible cartridge heater customization to meet specific application and installation requirements.
Size and Shape
Diameter, length, and specific geometries for any cartridge heater element can be customized.
Wattage and Voltage
Precisely matched to your process requirements, from low to high wattage settings.
Material Selection
Offering a variety of sheath materials, such as stainless steel and Incoloy, to suit diverse operating conditions.
Lead Wire Type and Length
Adapting to various installation and electrical connection demands.
Integrated Sensors
Options for cartridge heater with built-in thermocouple or other sensors for seamless temperature monitoring.
Special Coatings & Surface Treatments
To enhance corrosion resistance or specific heat transfer properties.
Why Choose Darwinheat
Darwinheat delivers reliable cartridge heating solutions backed by engineering expertise and consistent manufacturing quality.
Introduction of Cartridge Heater
| Item | Specification |
| Cartridge Heater Diameter | 2.5 mm – 5.9 mm |
| Diameter Tolerance | ±0.05 mm |
| Cartridge Heater Length | 10 mm – 2000 mm |
| Length Tolerance | ±1 mm |
| Standard Cold Zone Length | 5 – 10 mm |
| Casing Material | Stainless steel (304 / 321 / 316 / 310S), Titanium alloy, Incoloy 800 / 840 |
| Resistance Heating Wire | NiCr 80/20 |
| Rated Voltage | 12V / 24V / 36V / 48V / 100V / 110V / 200V / 220V / 230V / 240V / 380V / 480V |
| Maximum Operating Temperature | 950 °C |
| Power Tolerance | +5% / −10% |
| Resistance Tolerance | +10% / −5% |
| Cold Insulation Resistance | ≥ 500 MΩ |
| Maximum Cold Leakage Current | ≤ 0.5 mA |
Request a Quote or Engineering Support
Get fast, application-specific recommendations and pricing from our heating engineers.
