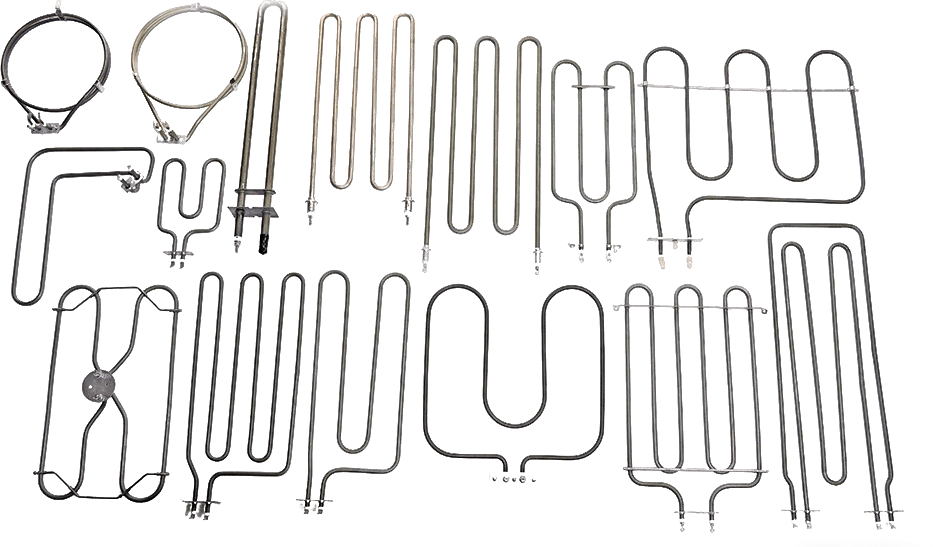

Oven Heating Elements from Residential to Industrial
Darwinheat oven heating elements deliver precise, even heat with durable high-temperature materials and customizable sizes, shapes, and wattages—engineered for consistent performance in residential, commercial, and industrial ovens.
Oven Heating Elements Configurations
Explore our versatile oven heating elements designed for different oven layouts and thermal needs — from general baking to high-temperature industrial applications.
Steam Oven Heating Elements
Corrosion-resistant elements specifically treated for high-humidity environments and steam-injection cooking.

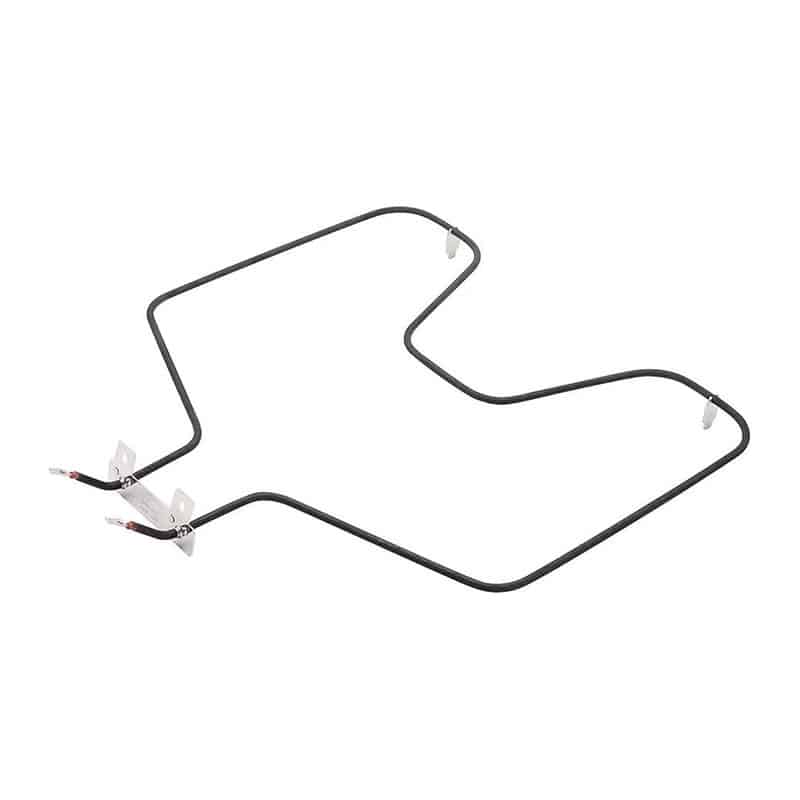

Bottom & Bake Heating Elements
The primary heat source for steady convection, ensuring uniform bottom heat and consistent baking results.

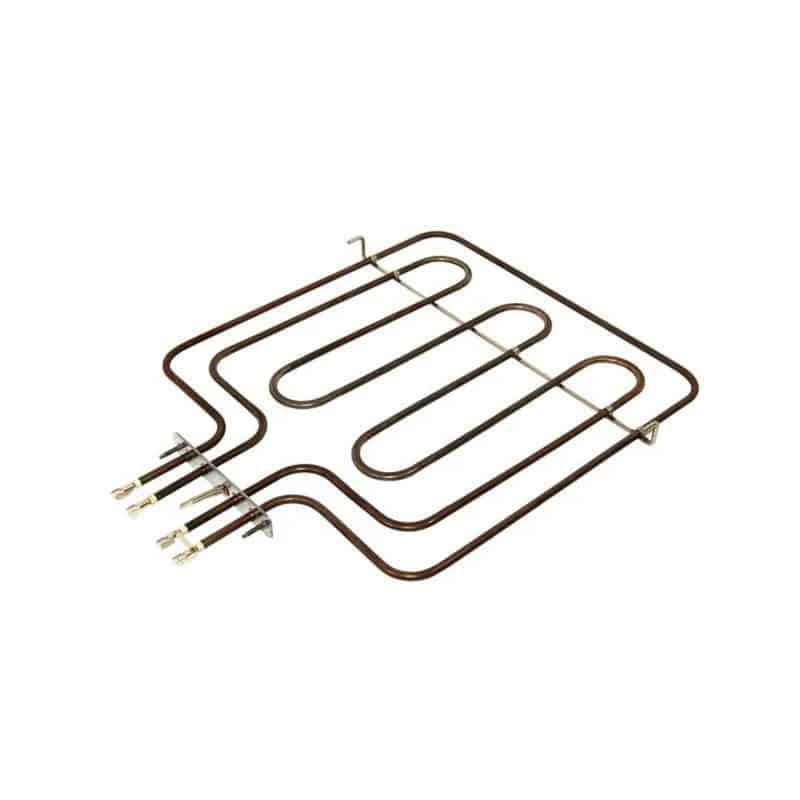

Top & Broil Heating Elements
High-intensity elements designed for top-down radiation, perfect for surface browning and professional broiling.
Circular Convection Elements
Precision-coiled circular elements designed to surround convection fans for true aero-thermal heating.

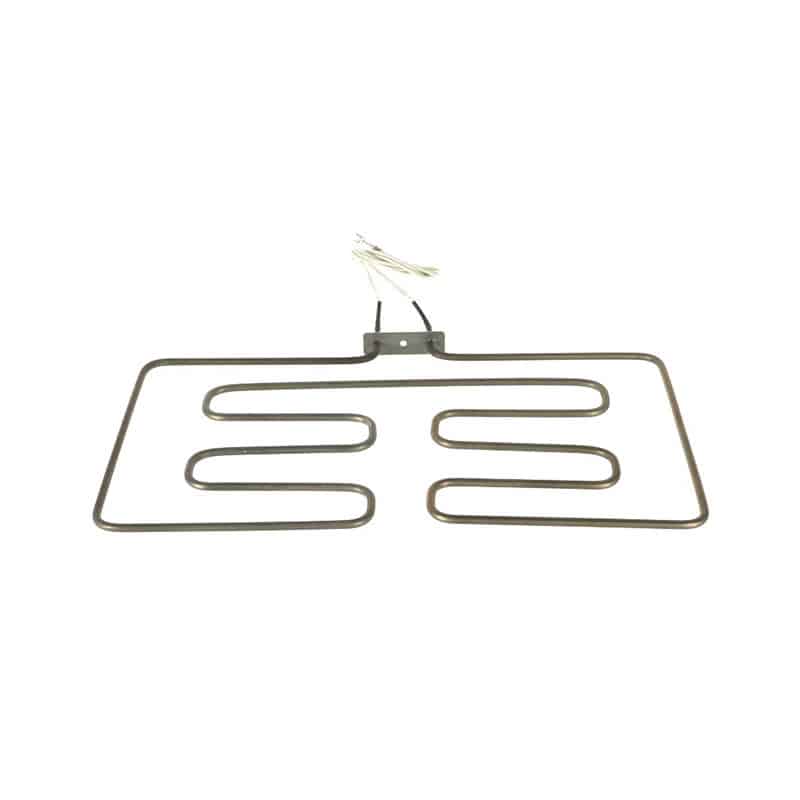

Grill & Salamander Elements
Heavy-duty serpentine elements engineered for commercial grills requiring instant, intense infrared heat.

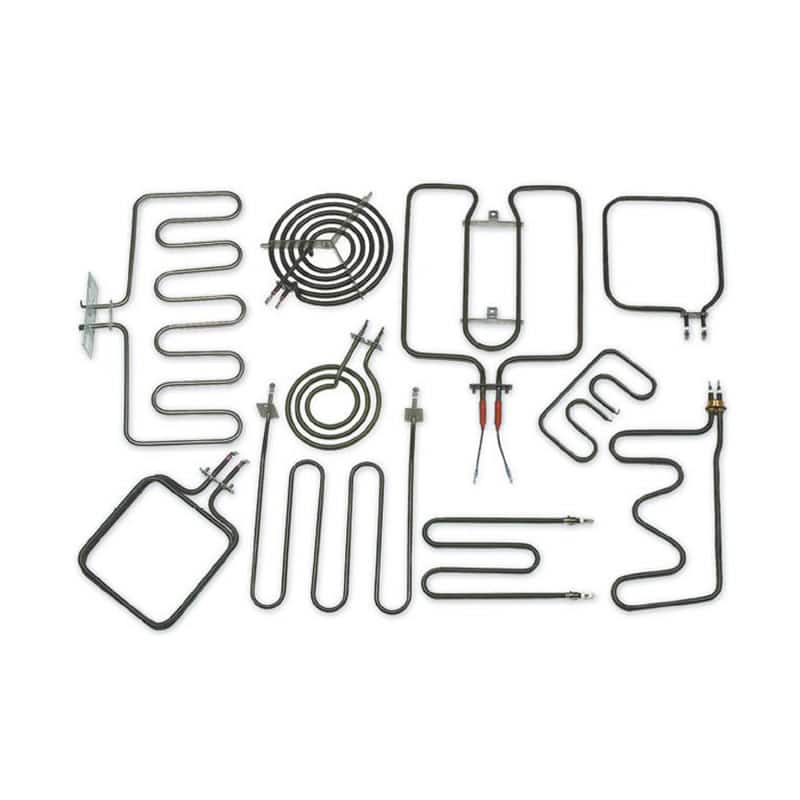

Custom Industrial Oven Elements
Fully tailored heating solutions engineered for large-scale conveyor ovens and industrial thermal processes.
Oven Heating Elements Applications
Darwinheat oven heating elements are suitable for a wide range of uses

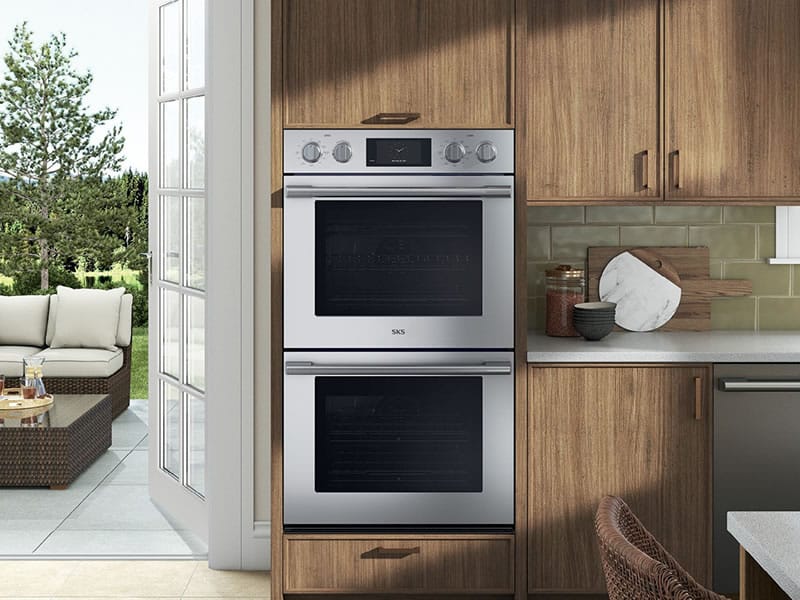

Residential Ovens
Electric ovens for home cooking, range and wall ovens.

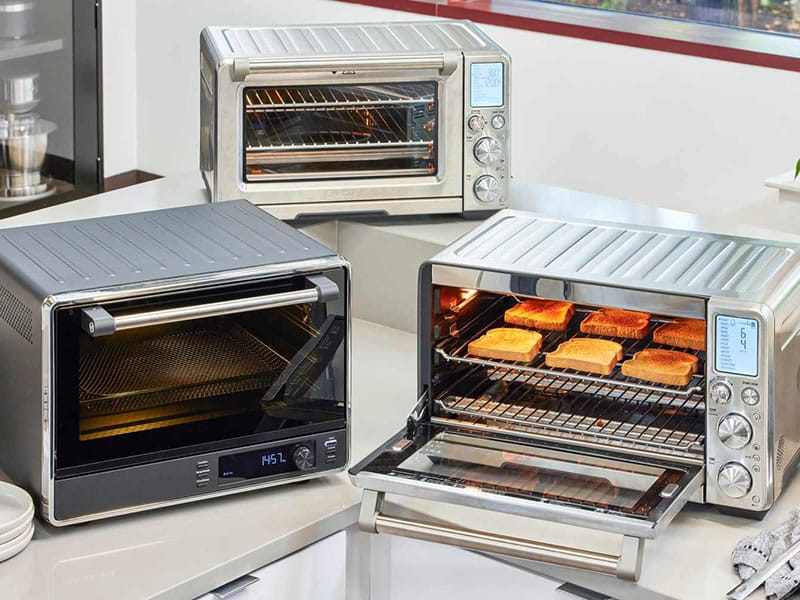

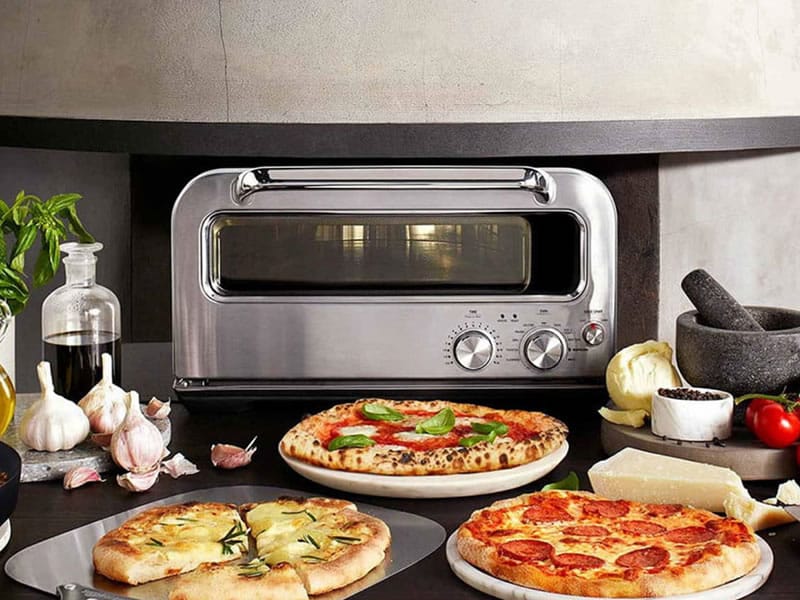

Countertop Ovens & Toasters
Toaster ovens, countertop baking and reheating appliances.
Food & Beverage Processing
Snack ovens, drying and roasting machines, food production ovens.

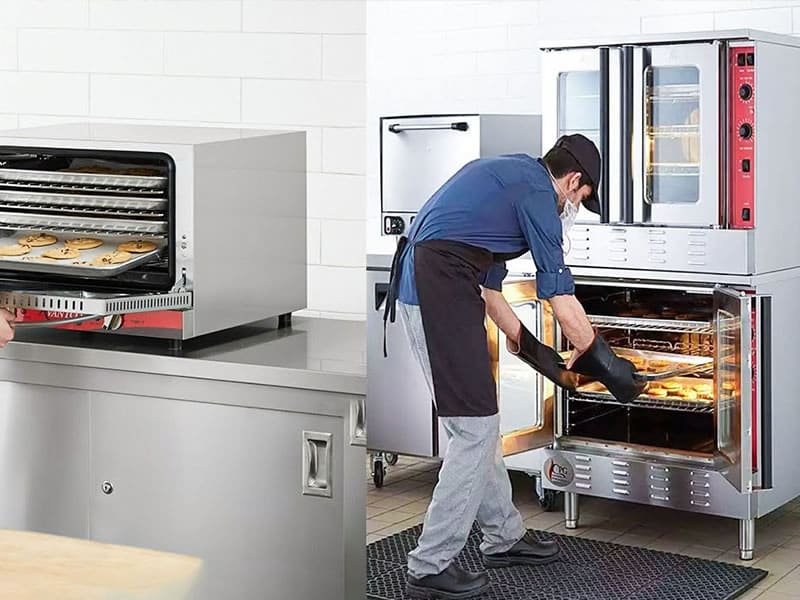

Professional Cooking & Baking
Grills, broilers, rotisserie, bakery and pizza ovens.

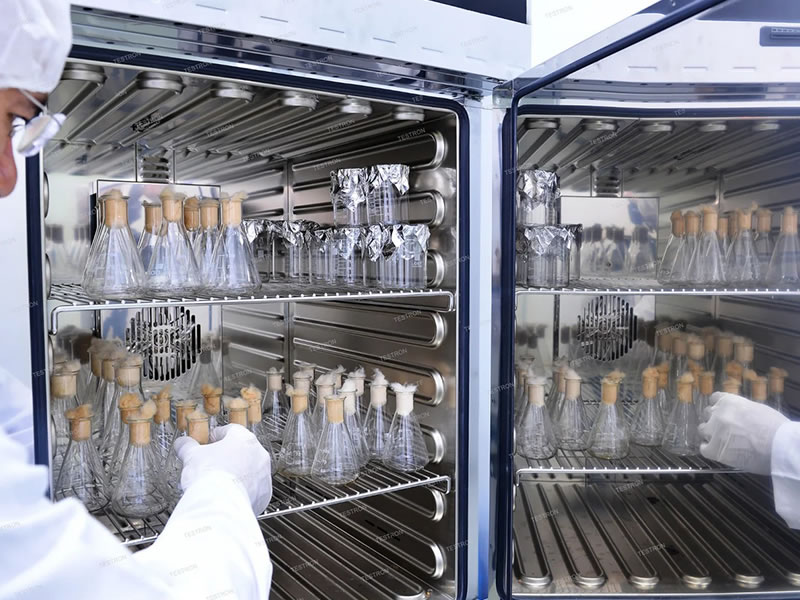

Laboratory & High-Temp Furnaces
Lab ovens for drying and sterilization, industrial heat-treat ovens.

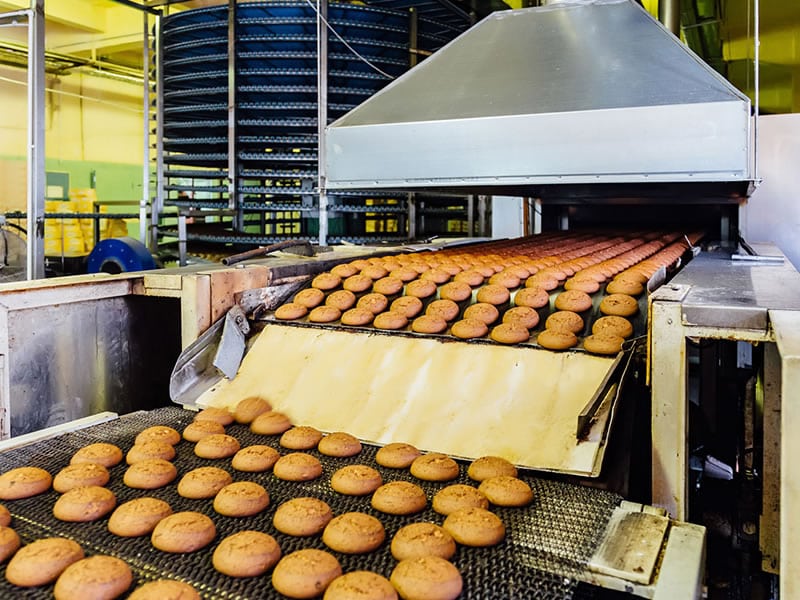

Industrial & Conveyor Ovens
Conveyor ovens, powder coating and mass-production thermal equipment.
Why Choose Darwinheat Oven Heating Elements
Darwinheat offers reliable, high-performance oven heating elements engineered for durability and consistent thermal performance.
Even, Consistent Heat Distribution
Engineered elements provide stable, uniform heat to prevent hot spots and ensure baking/cooking consistency.
High-Temperature Durability
Elements built with premium alloys and advanced surface treatments withstand extreme thermal cycles and prolonged use.
Customizable to Application
Size, wattage, material, and surface finish can be tailored for specific oven models and industrial processes.
Enhanced Thermal Efficiency
Black annealed or green annealed surfaces improve heat radiation and reduce energy consumption.
Industrial & Residential Support
Suitable for home appliances, food processing equipment, and high-duty commercial ovens.
Reliable Quality & Compliance
Designed to meet international standards with robust insulation and low leakage.
General Specifications
Key technical parameters for oven heating elements with flexible options to match diverse oven designs.
| Parameter | Specification | Notes |
| Rated Voltage | 100–240 V (residential) / 380–480 V (commercial) | Single or three-phase options |
| Wattage Range | 300 W – 3500 W | Custom based on oven volume and heat requirements |
| Wattage Tolerance | +5% / −10% | IEC 60335 standard |
| Resistance Tolerance | ±10% | Measured at cold state |
| Max Sheath Temp | Up to ~800°C | Depends on material selection |
| Cold Zone Length (Lu) | 25 mm – 50 mm | Must extend beyond insulation wall |
| Leakage Current (Hot/Cold) | ≤0.5 mA / ≤0.1 mA | Engineered to be lower than IEC limits |
| Insulation Resistance (Hot) | ≥ 50 MΩ at 500 V DC | Ensures electrical integrity |
| Dielectric Strength | 1250–1500 V / 1 min | No breakdown |
Material Selection & Surface Treatments
Sheath material and surface finish guidance for optimal heat tolerance and performance.
| Material | Best For | Performance |
| Incoloy 800 / 840 | Self-cleaning pyrolytic ovens | Excellent oxidation and carburization resistance up to ~870°C |
| SUS 304 / 321 | Standard baking and convection ovens | Reliable performance up to ~650°C |
| Copper | Lower temperature applications | Good heat transfer, moderate corrosion resistance |
Material choice should consider oven type, operating temperature, and expected thermal cycles.
Surface Treatment Technologies
Green Annealing
High-temperature oxide layer improves heat stability, prevents surface scaling, and provides a premium finish.
Black Annealing
Uniform black finish increases emissivity for faster baking and blends into oven interiors.
Electropolishing
Ultra-smooth surface reduces food adhesion and bacterial growth; ideal for steam ovens and display ovens.
