Washing Machine Heaters from Residential to Commercial Use
Darwinheat designs washing machine heating elements for top-load and front-load systems. Engineered for long life in detergent environments with custom shapes and integrated sensors.
Washing Machine Heater Configurations
Explore Our Range of Efficient, Customizable Heaters for Every Industrial Application

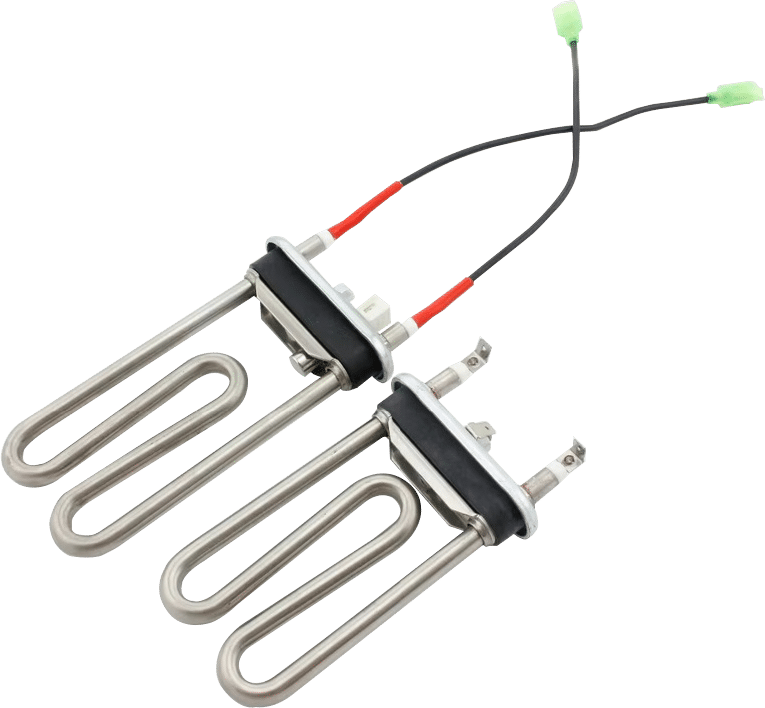

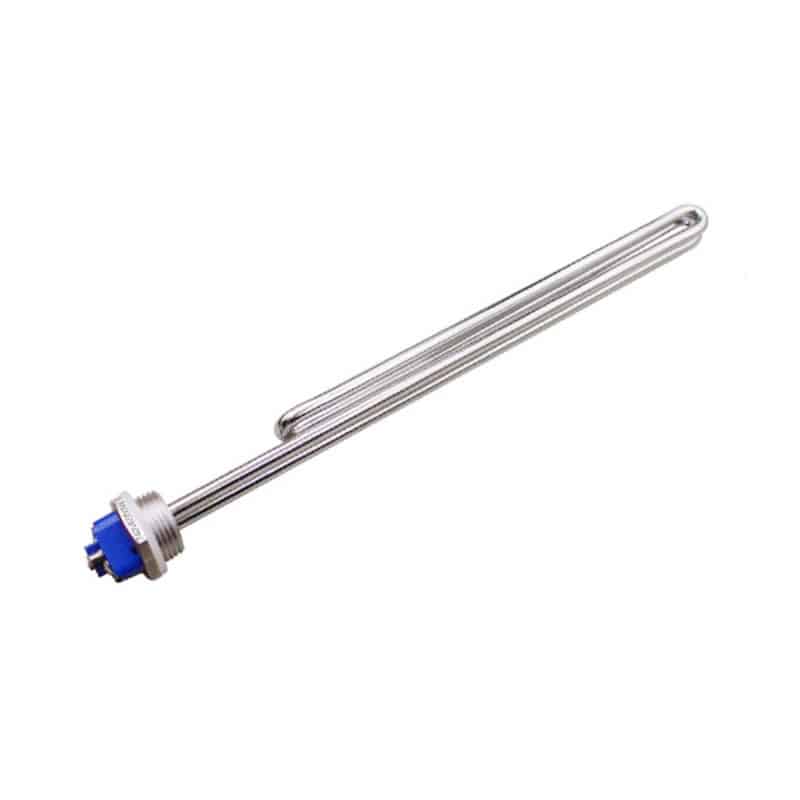

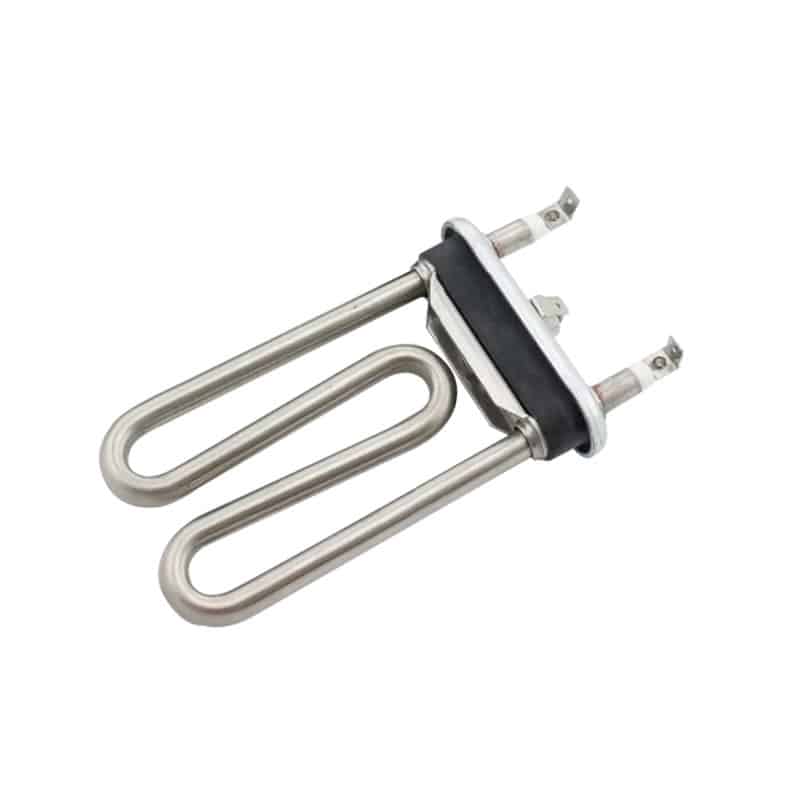

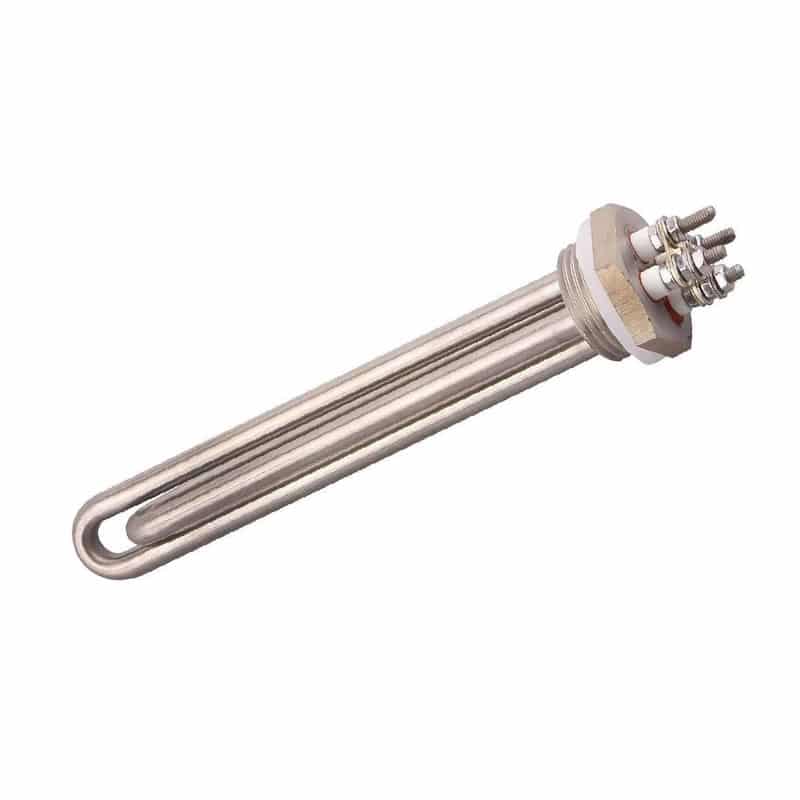

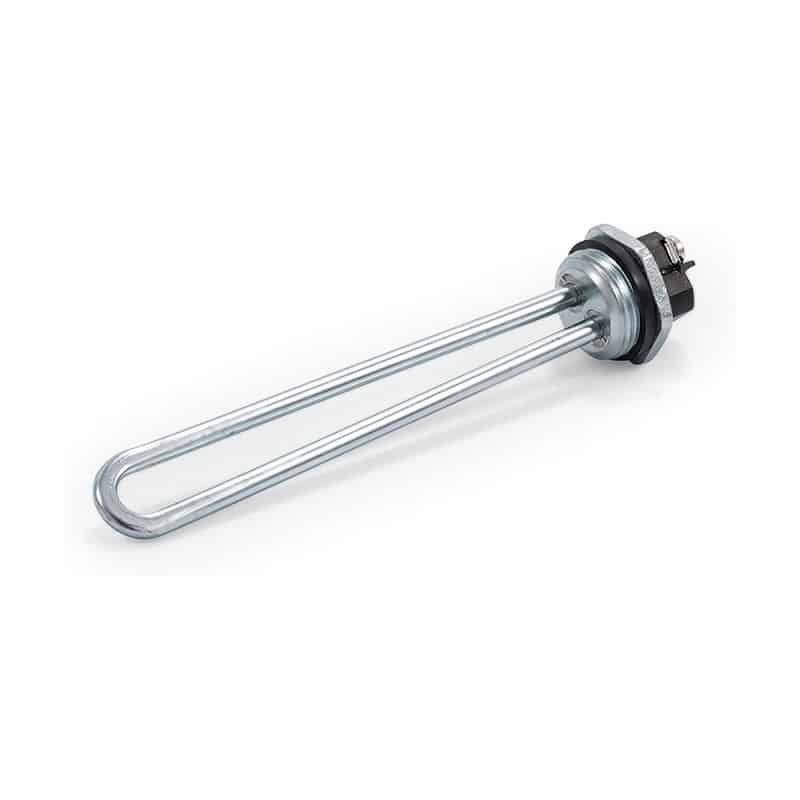

Tubular Washing Machine Heater Elements
Standard tubular heating elements designed for efficient water heating in washing machines.
Thermostat Integrated Wash Heaters
Elements with built-in thermostats or thermal protection for controlled heating.
High-Density Heater Elements
High-wattage designs for commercial or heavy-duty washing equipment.
Corrosion-Resistant Wash Heaters
Heaters with sheath materials for hard water and chemically treated environments.
Sensor-Ready Washing Machine Heaters
Heating elements designed with integrated sensor compatibility (NTC / temp feedback).
Custom Washing Machine Heater Solutions
Fully custom heating elements tailored to specific appliance designs and installation needs.
Suitable for Washing Machines
Darwinheat washing machine heaters are suitable for a variety of appliance types
Top-Load Washing Machines -
Front-Load Washing Machines -
Semi-Automatic Washing Machines -
Fully Automatic Washing Machines
Why Choose Darwinheat Washing Machine Heaters
Darwinheat offers reliable, high-performance washing machine heaters engineered for durability and consistent heating performance:
Better Cleaning
Darwinheat heaters rapidly raise wash water temperature to improve detergent performance and stain removal.
Uniform Heat Distribution
Precisely engineered elements provide even heating throughout the cycle for consistent results.
Customizable to Your Requirements
Available in multiple voltages, wattages, materials, and configurations to fit diverse machine types.
Reliable & Durable Construction
Built with corrosion-resistant sheaths and quality insulation for long service life in humid environments.
Safe, Stable Operation
Integrated thermal protection stays within safe operating temperatures to prevent overheating.
Broad Compatibility
Suitable for residential and commercial washing machines across multiple load formats.
General Specifications
Below are typical specifications for Darwinheat washing machine heaters. Custom configurations are available to match specific machine models and control systems:
| Parameter | Specification | Engineering Notes |
| Rated Voltage | 230V AC (Standard) | Customizable: 110V – 240V |
| Power Rating | 1500W – 2500W | Power tolerance: +5% / −10% |
| Tube Diameter | Ø 8.5 mm | Precision tolerance: ±0.05 mm |
| Immersion Length | 170 mm – 300 mm | Matches standard tub depths |
| Surface Load | 10 – 13 W/cm² | High-density design for rapid heating |
| Internal Fuse | Cut-off: 128°C / 152°C | Options: single fuse or double fuse |
| NTC Sensor | R25 = 4.8 kΩ / 12 kΩ | B-value: 3977K / 3750K (standard curves) |
| Hi-Pot Test | 1500V / 0.5 mA / 1 s | Cold state test |
| Insulation Resistance | ≥ 500 MΩ | Measured at 500V DC |
Sheath Material Matrix
Darwinheat sheath material selection is based on desired corrosion resistance, temperature tolerance, and water chemistry. Use this guide as a starting point for material choice:
| Material Grade | Performance Level | Key Characteristics | Recommended Application |
| SUS 316L (Stainless Steel) | ★★★★☆ Gold Standard | Excellent corrosion resistance. Contains molybdenum (Mo) to resist pitting from chlorides and alkaline detergents. | Standard & mid-range washing machines |
| Incoloy 840 (Nickel Alloy) | ★★★★★ Premium Grade | Superior stress corrosion resistance. Higher nickel content prevents cracking under thermal shock and hard water scaling. | High-end and industrial washing machines |
Frequently Asked Questions
Request a Quote or Engineering Support
Get fast, application-specific recommendations and pricing from our heating engineers.
